| Place of Origin: | CHINA |

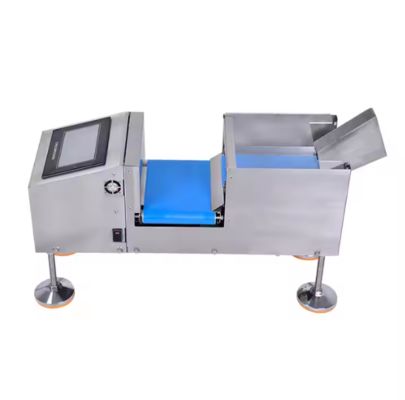

| Model Number: | Checkweigher Integration in Packaging Lines |
| Minimum Order Quantity: | 1 set |
|---|---|
| मूल्य: | बातचीत योग्य |
| Packaging Details: | Caron box |
| Delivery Time: | 10-30days |
| Supply Ability: | 2000 set per month |
| उत्पाद: | पैकेजिंग लाइनों में Checkweigher एकीकरण | कन्वेयर चौड़ाई: | 200-1200 मिमी |
|---|---|---|---|
| बेल्ट गति सिंक्रनाइज़ेशन: | 5–120 मीटर/मिनट | उत्पाद रिक्ति: | मिन। आइटम के बीच 50 मिमी |
| बिजली की आपूर्ति: | 400V/50Hz या 480V/60Hz | I/O सिग्नल: | 24VDC (16di/8do न्यूनतम) |
| संचार प्रोटोकॉल: | ईथरनेट/आईपी, प्रोफिनेट, मोडबस टीसीपी | सटीकता वर्ग: | Y (b) to y (a) (0.1g -0.001g) |
| अधिकतम थ्रूपुट: | 50-800 आइटम/मिनट | अस्वीकृति प्रकार: | वायवीय/वायु चाकू/गोताखोर |
| अस्वीकृति गति: | <10ms सक्रियण समय | आंकड़ा नमूनाकरण दर: | 500-1000Hz |
| ईआरपी/एमईएस कनेक्टिविटी: | सैप/ओरेकल/रॉकवेल | परिचालन तापमान: | 0-50 डिग्री सेल्सियस |
| आईपी रेटिंग: | IP54 -IP69K | सुरक्षा अखंडता स्तर: | सिल -2 |
| आपात रोक प्रतिक्रिया: | <500ms पूर्ण विराम | ||
| प्रमुखता देना: | automated checkweighing machine,automatic checking weigher for manufacturing,precision checkweigher |
||
| Attribute | Value |
|---|---|
| Conveyor Width | 200–1200mm |
| Belt Speed Synchronization | 5–120 m/min |
| Product Spacing | Min. 50mm between items |
| Power Supply | 400V/50Hz or 480V/60Hz |
| I/O Signals | 24VDC (16DI/8DO minimum) |
| Communication Protocols | Ethernet/IP, PROFINET, Modbus TCP |
| Accuracy Class | Y(b) to Y(a) (0.1g–0.001g) |
| Maximum Throughput | 50–800 items/min |
| Rejection Type | Pneumatic/Air Knife/Diverter |
| Rejection Speed | <10ms activation time |
| Data Sampling Rate | 500–1000Hz |
| ERP/MES Connectivity | SAP/Oracle/Rockwell |
| Operating Temperature | 0–50°C |
| IP Rating | IP54–IP69K |
| Safety Integrity Level (SIL) | SIL-2 |
| Emergency Stop Reaction | <500ms full stop |
Modern packaging lines increasingly incorporate automated checkweighers as mission-critical quality control stations that verify product weight compliance while maintaining production flow. Proper integration ensures:
Properly integrated checkweighers become neural hubs in smart packaging lines, delivering both quality assurance and operational intelligence. The integration strategy must balance mechanical precision, data integrity, and production ecology to achieve true Industry 4.0 performance.
