| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Mettler Toledo |
| मॉडल संख्या: | भार सेल MT1022-3kg 3m |
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | कारॉन बॉक्स |
| प्रसव के समय: | 10-30 दिनों तक |
| आपूर्ति की क्षमता: | प्रति माह 2000 सेट |
| उत्पाद: | मेटलर टोलेडो लोड सेल | अधिकतम योग्यता: | 6.6 एलबी (3 किलोग्राम) |
|---|---|---|---|
| सामग्री: | एल्यूमिनियम, निष्क्रिय | मैट्रोलोजी: | NTEP III 5,000D OIML C3 |
| सटीकता: | मानक | संरक्षण रेटिंग: | IP67 |
| मंच का आकार (LXW): | 350 मिमी x 350 मिमी | कनेक्टिविटी: | अनुरूप |
| केबल: | 10 फीट (3 मीटर) | ||
| प्रमुखता देना: | MT1022 3kg load cell,Precision weight sensor with cable,Mettler Toledo 3m load cell |
||
| Attribute | Value |
|---|---|
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 6.6 lb (3 kg) |
| Material | Aluminum, passivated |
| Metrology | NTEP III 5,000d OIML C3 |
| Accuracy | Standard |
| Protection Rating | IP67 |
| Platform Size (LxW) | 350 mm x 350 mm |
| Connectivity | Analog |
| Cable | 10 ft (3 m) |
A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

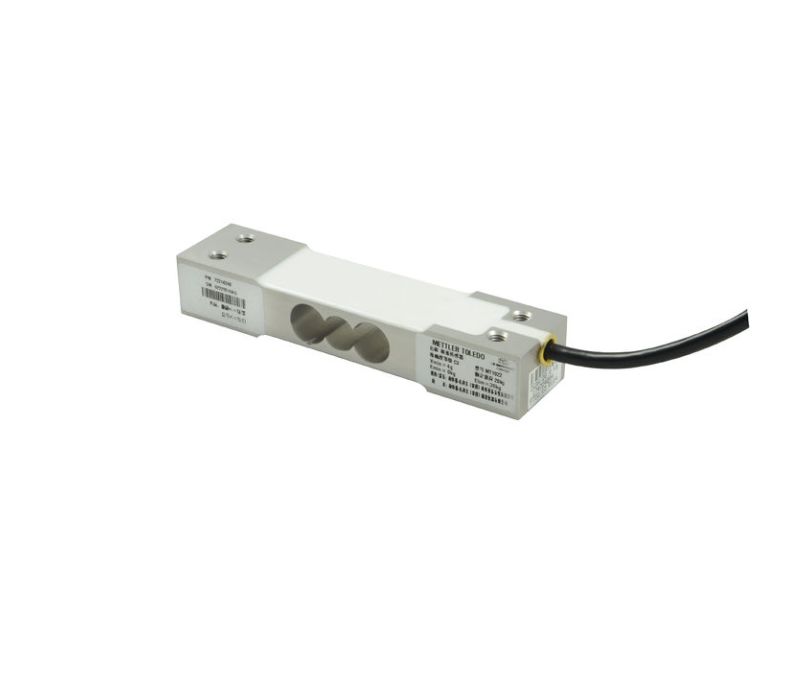

A high performance single point load cell. Load cell is off-center compensated thus copes with platform moments. Metrology approvals include OIML as standard.
Usage of best aluminum materials & SG technology guarantee long term durability.
ATEX Zone 1/21/2/22 approvals as standard. No need to ask for options, no need to stock variations - one fits all.
