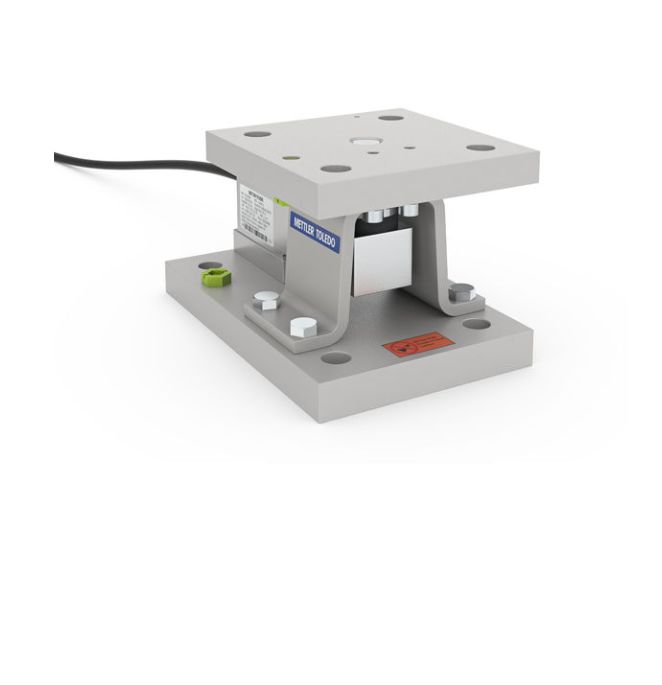

110kg SWB405 Weighing Module – Carbon Steel Load Cell Sensor with 5m Cable for Platform Scales

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

• All Safety on Board: Offers all safety features, including anti-uplift protection, 360° checking and down-stop protection to ensure the safety of tank weighing.
• Easy Integration: SafeLock™ feature is built into SWB405 MultiMount™ weigh modules to make installation easier with all components locked in ideal initial positions.
• Reliable Weighing: The hermetically sealed SLB415 load cell with IP68 rating can meet most industrial requirements.
