| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Mettler Toledo |
| मॉडल संख्या: | वजन मॉड्यूल SWB805 316 4.4T/10K C1 |
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | कारॉन बॉक्स |
| प्रसव के समय: | 10-30 दिनों तक |
| आपूर्ति की क्षमता: | प्रति माह 2000 सेट |
| उत्पाद: | मेटलर टोलेडो लोड सेल | अधिकतम योग्यता: | 500 एलबी (220 किलोग्राम) |
|---|---|---|---|
| सामग्री: | 304 स्टेनलेस स्टील | मैट्रोलोजी: | OIML C3, NTEP III 5M |
| भरा कोश: | SLB815 | सटीकता: | मानक |
| संरक्षण रेटिंग: | IP68/69K | पर्यावरण / सामग्री: | बार-बार वॉश-डाउन / हाइजीनिक |
| खतरनाक अनुमोदन: | ATEX, FM, CFM | निर्णायक मोड़: | मानक |
| केबल: | 5 एम | ||
| प्रमुखता देना: | stainless steel weigh module,500lb load cell sensor,Mettler Toledo load cell |
||
Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.
Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.
Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, eliminating contamination risks.

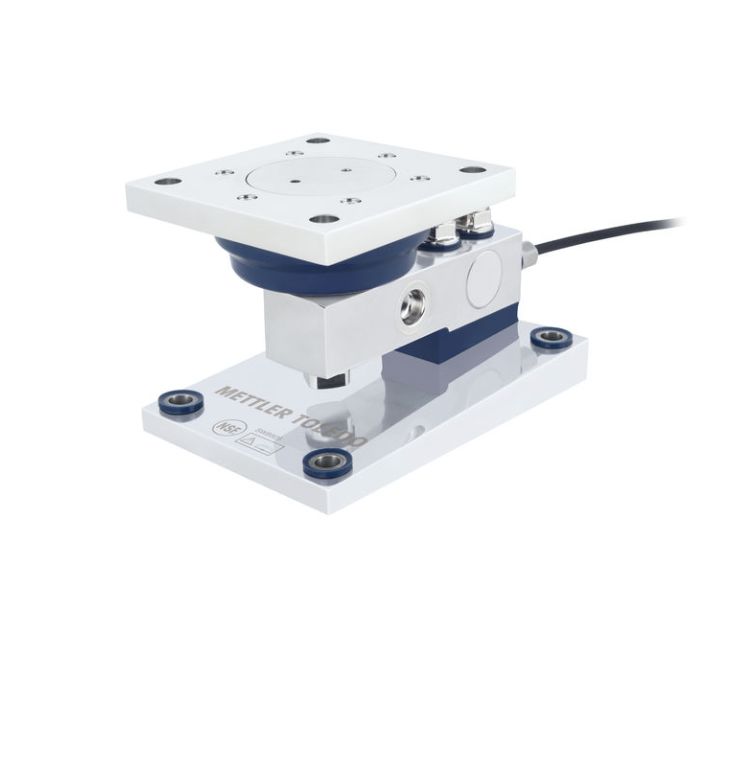

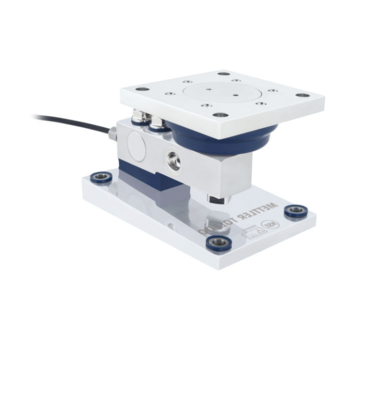

A compression weigh module designed so that its top plate and base plate compress when weight is applied. It can be attached directly to the ground, piers, or structural beams. These modules are typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.
| Attribute | Value |
|---|---|
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 500 lb (220 kg) |
| Material | 304 Stainless steel |
| Metrology | OIML C3, NTEP III 5M |
| Load Cell | SLB815 |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX, FM, cFM |
| Criticality | Standard |
| Cable | 5 m |
