Name: 4400kg SWB405 Stainless Steel Weigh Module with Durable Load Cell with 10m Cable
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: वजन मॉड्यूल SWB405 4400 किग्रा 10 मीटर एसएस
Availability: InStock

होम उत्पाद

4400kg SWB405 Stainless Steel Weigh Module with Durable Load Cell with 10m Cable

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	Mettler Toledo
मॉडल संख्या:	वजन मॉड्यूल SWB405 4400 किग्रा 10 मीटर एसएस

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 सेट
मूल्य:	बातचीत योग्य
पैकेजिंग विवरण:	कारॉन बॉक्स
प्रसव के समय:	10-30 दिनों तक
आपूर्ति की क्षमता:	प्रति माह 2000 सेट

संपर्क करें

विस्तृत उत्पाद विवरण

उत्पाद:	मेटलर टोलेडो लोड सेल	अधिकतम योग्यता:	10,000 पाउंड (4,400 किलोग्राम)
सामग्री:	स्टेनलेस 304 इलेक्ट्रोपॉलिश	मैट्रोलोजी:	OIML C3, NTEP III 5M
भरा कोश:	SLB415	सटीकता:	मानक
संरक्षण रेटिंग:	IP68 NEMA 6	पर्यावरण / सामग्री:	वॉश-डाउन / स्टेनलेस स्टील
खतरनाक अनुमोदन:	ATEX, FM	निर्णायक मोड़:	मानक
केबल:	鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆
प्रमुखता देना:	4400kg stainless steel weigh module , durable load cell with 10m cable , Mettler Toledo SWB405 weigh module

4400kg SWB405 Stainless Steel Weigh Module with Durable Load Cell and 10m Cable

Key Features

Stainless steel construction for durability in harsh environments
IP68/NEMA 6 protection rating for wash-down applications
ATEX and FM certified for hazardous locations
Includes 10-meter cable for flexible installation
Meets OIML C3 and NTEP III 5M metrology standards

Product Overview

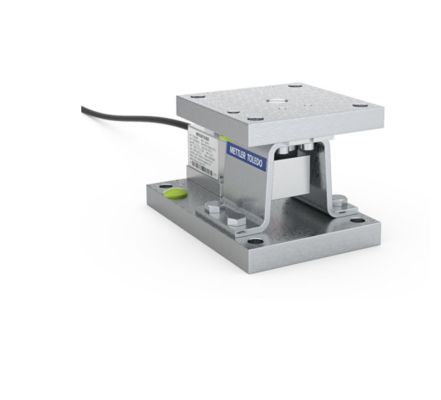

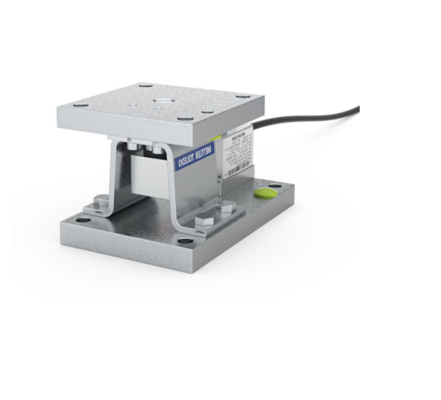

The SWB405 stainless steel weigh module features a compression design where weight application causes the top and base plates to compress together. This robust module can be directly mounted to ground, piers, or structural beams, making it ideal for large-scale weighing applications including truck scales, railroad track scales, and tank/hopper/silo weighing systems.

All Safety on Board

Includes comprehensive safety features such as anti-uplift protection, 360° checking, and down-stop protection to ensure secure tank weighing operations.

Easy Integration

SafeLock™ technology is integrated into the SWB405 MultiMount™ design, simplifying installation with all components pre-locked in optimal initial positions.

Reliable Weighing

The hermetically sealed SLB415 load cell with IP68 rating delivers dependable performance for demanding industrial applications.

Technical Specifications

Material	Stainless 304 Electropolish
Maximum Capacity	10,000 lb (4,400 kg)
Protection Rating	IP68, NEMA 6
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Load Cell	SLB415
Accuracy	Standard
Metrology	OIML C3, NTEP III 5M
Cable Length	10 m
