| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Mettler Toledo |
| मॉडल संख्या: | वजन मॉड्यूल 0970 5T C6 RDT |
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | कारॉन बॉक्स |
| प्रसव के समय: | 10-30 दिनों तक |
| आपूर्ति की क्षमता: | प्रति माह 2000 सेट |
| उत्पाद: | मेटलर टोलेडो लोड सेल | अधिकतम योग्यता: | 11,230 एलबी (5,000 किलोग्राम) |
|---|---|---|---|
| सामग्री: | WM 316L, LC 17-4ph | मैट्रोलोजी: | NTEP IIIL 10,000 OIML C6 |
| भरा कोश: | 5 मी (16.6 फीट) केबल आरएलसी | सटीकता: | उच्च |
| संरक्षण रेटिंग: | IP68 | पर्यावरण / सामग्री: | बार-बार वॉश-डाउन / हाइजीनिक |
| खतरनाक अनुमोदन: | Atex ， FM | निर्णायक मोड़: | मानक |
| प्रमुखता देना: | C6 certified weigh module,5T RDT load cell,Mettler Toledo weigh module |
||
| Attribute | Value |
|---|---|
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 11,230 lb (5,000 kg) |
| Material | WM 316L, LC 17-4PH |
| Metrology | NTEP IIIL 10,000 OIML C6 |
| Load Cell | 5m (16.6ft) cable RLC |
| Accuracy | High |
| Protection Rating | IP68 |
| Environment / Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX, FM |
| Criticality | Standard |

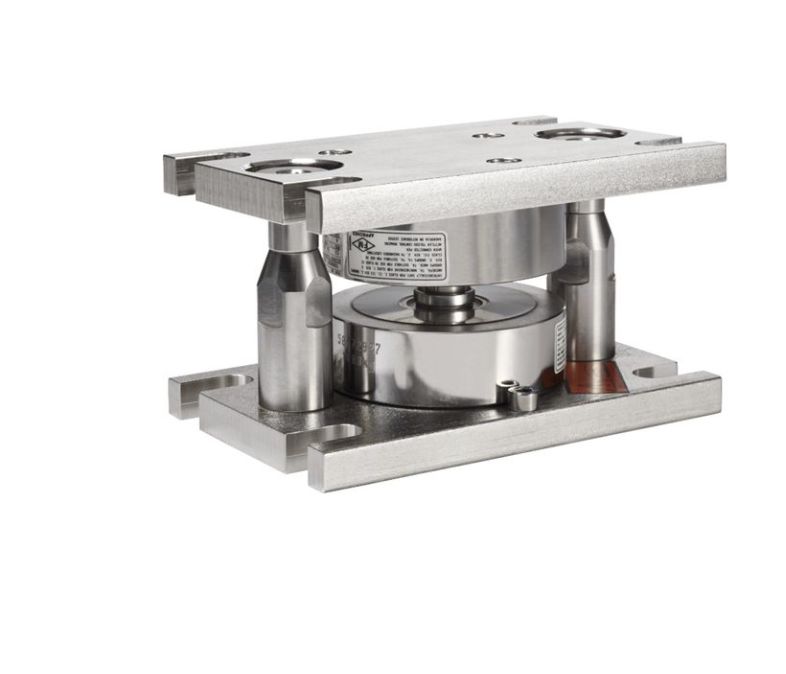

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.
For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.
Features include 360° self-checking, dual lift-off & down-stops, hazardous approvals & IP68 stainless load cell. Peace of mind.
Product is light, low profile & aligned & rigidly locked for installation, with or without the load cell installed. Orientation is not critical.
| Material | WM 316L, LC 17-4PH |
| Material No | 61046858 |
| Maximum Capacity | 11,230 lb (5,000 kg) |
| Protection Rating | IP68 |
| Environment / Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX FM |
| Load Cell | 5m (16.6ft) cable RLC |
| Accuracy | High |
| Metrology | NTEP IIIL 10,000 OIML C6 |
