| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Mettler Toledo |
| मॉडल संख्या: | वजन मॉड्यूल SWB505 मिमी SS316 2.2T EN1090 |
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | कारॉन बॉक्स |
| प्रसव के समय: | 10-30 दिनों तक |
| आपूर्ति की क्षमता: | प्रति माह 2000 सेट |
| उत्पाद: | मेटलर टोलेडो लोड सेल | अधिकतम योग्यता: | 5,000 एलबी (2,200 किलोग्राम) |
|---|---|---|---|
| सामग्री: | 316 स्टेनलेस स्टील | मैट्रोलोजी: | NTEP III 5M, OIML C3 |
| केबल: | 5 एम | सटीकता: | मानक |
| संरक्षण रेटिंग: | IP68/69K | पर्यावरण / सामग्री: | बार-बार वॉश-डाउन / हाइजीनिक |
| खतरनाक अनुमोदन: | ATEX, FM, CFM | निर्णायक मोड़: | मानक |
| प्रमुखता देना: | carbon steel load cell module,2.2 ton load cell,EN1090 compliant load cell |
||

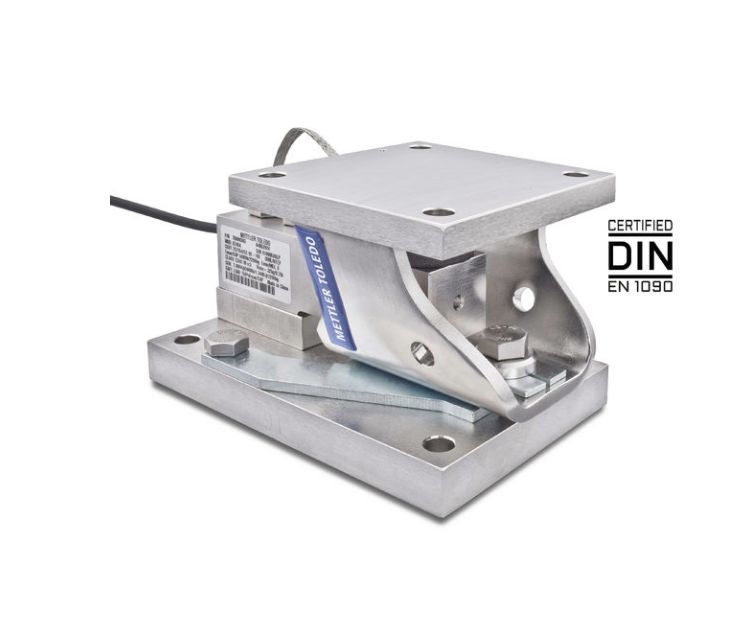

The SWB505 compression weigh module is engineered with carbon steel construction and a 2.2 ton capacity, compliant with EN1090 standards. Its design allows direct attachment to ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.
Multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.
Features 360° checking, built-in anti-uplift and down stops, along with hazardous area approvals and IP68-rated stainless steel load cell for reliable operation.
Simplified alignment for installation with easy transition to weighing mode. Requires minimal lift for load cell removal during maintenance.
| Material | 316 Stainless steel |
| Maximum Capacity | 5,000 lb (2,200 kg) |
| Protection Rating | IP68/69k |
| Environment | Frequent wash-down / Hygienic |
| Hazardous Approvals | ATEX, FM, cFM |
| Cable Length | 5 m |
| Accuracy | Standard |
| Metrology | NTEP III 5M, OIML C3 |
